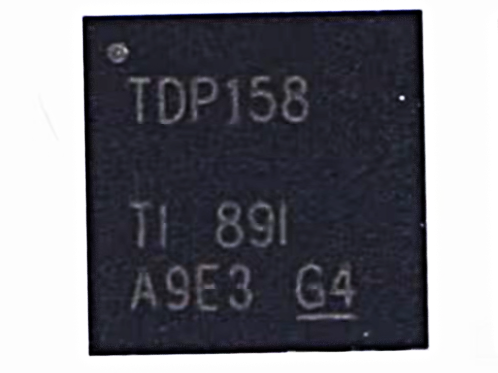

XBOX One X HDMI Retimer Chip TDP158

The Texas Instruments TDP158 is the HDMI retimer/redriver IC used on the Xbox One X motherboard. It plays an important role in conditioning and driving the HDMI signal between the console's GPU and HDMI output. The TDP158 supports HDMI 1.4b and HDMI 2.0b signalling, with data rates up to 6 Gbps per lane.

A faulty TDP158 can result in no HDMI output, a black screen, or no signal despite the console otherwise powering on normally. However, these symptoms can also be caused by other faults, so proper diagnosis should be performed before replacing the IC.

Features

• 🎮 Designed for Xbox One X – Compatible with the Xbox One X HDMI architecture
• 📺 HDMI retimer/redriver IC – Conditions and drives the high-speed HDMI signal
• ⚡ Up to 6 Gbps per lane – Supports high-bandwidth HDMI signalling
• 🔬 BGA package – Requires professional hot-air/BGA rework equipment
• 🛠️ Ideal for board-level repair – Suitable for HDMI no-signal and retimer-related repairs

Common Symptoms of a Faulty TDP158

• ❌ No HDMI output
• 📺 TV reports No Signal
• ⚫ Black screen despite the console powering on
• 🔌 HDMI port has been tested, inspected or replaced but the problem remains

Specifications

Manufacturer: Texas Instruments
Part Number: TDP158
Function: HDMI Signal Retimer / Redriver
HDMI Support: HDMI 1.4b / 2.0b
Maximum Signalling Rate: 6 Gbps per lane
Package: QFN
Application: Xbox One X HDMI repair

And I'd change the warning section to:

⚠️ Important

The TDP158 is a QFN surface-mount IC and requires appropriate hot-air/rework equipment and microsoldering skills for removal and installation. Proper PCB preparation and soldering technique are important to avoid damaging the surrounding components or PCB.

If you are not confident in your diagnosis or soldering capabilites, we can replace this chip as a service for you as well.
